Xinhai Thickening Equipment

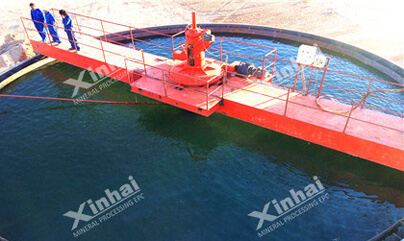

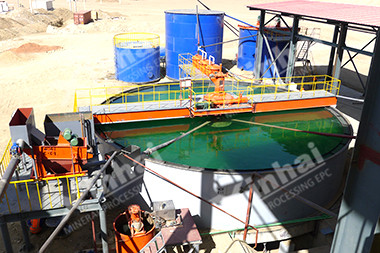

Efficient Improved Thickener

independent development, new and efficient

This thickener is indepently developed and successfully designed by Xinhai. The internal deaerating tank and serrated overflow prevent solid particles from adhering to bubbles, improve local suction phenomenon and greatly increase the sediment space; At the same time, Xinhai changed the traditional horizontal feeding to inclined feeding, which fundamentally eliminated the feeding jams.

After several improvements of Xinhai, this thickener is equipped with larger processing capacity, lower overflow turbidity and higher discharging concentration. It has been widely used in chemical industry, building materials, thickening and purifying of solid-contained liquid in sewage treatment.

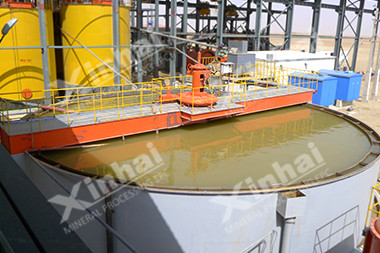

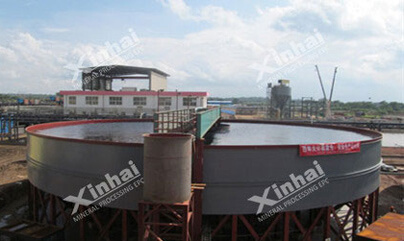

Efficient Thickener

new mechanical structure, 2-3 times processing capacity

Xinhai adopts new mechanical structure that greatly strengthens the flocculation of flocculating agent on solid particles. At the same time, new flocculent addition system increases the particle size of sedimentary solid particles, then accelerated the settling velocity; Compared with conventional thickener, this thickener is has higher production efficiency, 2-3 times unit processing capacity and 30% energy saving, which can effectively deal with all kinds of slurry, waste water and waste residue.

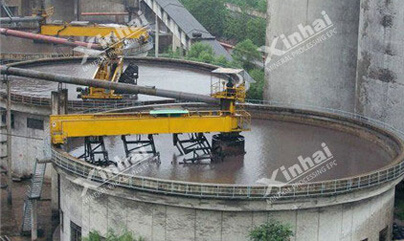

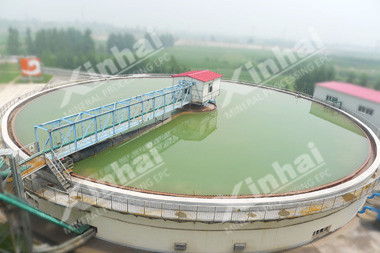

Peripheral Transmission Thickener

simple equipment structure, large processing capacity

Peripheral transmission covers peripheral roller transmission and peripheral gear transmission two forms that has advantages of high safety factor, stable and reliable running, easy to operation, convenient maintenance and long-range control. It can fully meet various operation requirements. In addition, Xinhai specially selects single row cross column rotary support or single row four point contact ball rotary support, which not only possess compact structure, light weight, but also can bear larger axial force, radial force and overturning moment.

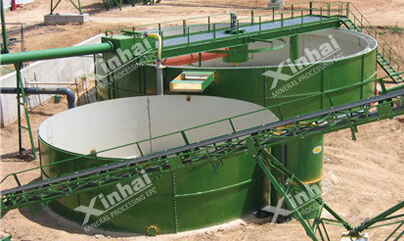

Hydraulic Motor Driving Center Thickener

hydraulic automatic rake lifting, intelligent operation

This thickener uses hydraulic drive, and core PLC auto-induction pressure sensor signal realizes hydraulic automatic rake lifting. Besides, configured automatic dosing system make it more intelligent and convenient. What’s more, the diameter of Xinhai hydraulic motor driving center thickener can reach 50m, which further improves the processing capacity and thickening efficiency, and fully realizes the thickening and dewatering of slurry.

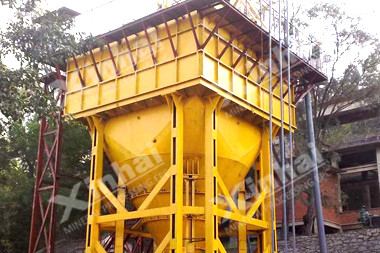

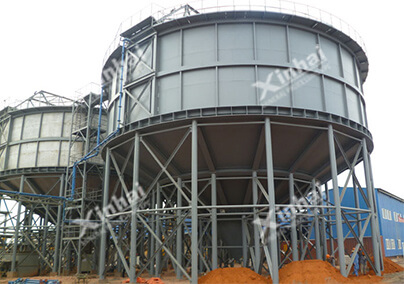

Efficient Deep Cone Thickener

high thickening concentration, small foot space

Xinhai adopts large angle cone design and the whole is vertical cone shape, which greatly improves underflow density and overflow quality; At the same time, both slender pool body design and flocculating agent accelerate the concentration process, reduce the floor space and improve automation degree. The processing capacity is 3-8 times higher than traditional thickener, and the underflow concentration is as high as 50-70%, which can satisfy the high thickening requirement and fine-grained slurry thickening.

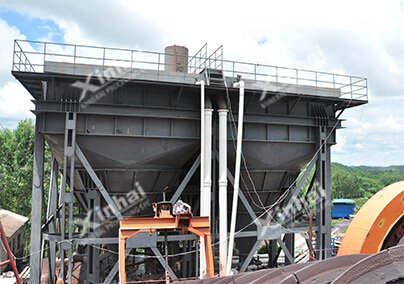

Tilted Plate Thickener

large subsidence area, high thickening efficiency

Based on the slow sedimentation rate of traditional inclined plate thickener, Xinhai improves plate channel integration and plate modularity on tilted plate thickener, which not only can keep the identity, but also can adopt deformation design according to slurry properties and separation size, maximally play the thickener performances; Besides, Xinhai set the vibrator on the outer wall of cone bucket, which accelerates the declining of ore grain, prevents pulp congestion and achieves forced discharge of high concentration underflow. The underflow concentration can reach 70%. It is suitable for tailings flotation and all kinds of solid-contained slurry.
