Jig

Introduction: An equipment realizes the separation of light and heavy mineral by the different sedimentation speed in vertical alternating water flow
Capacity: 1～25t/h
Product Improvement: The cone slide valve is adopted; the failure rate is reduced by 80%; low energy consumption;the separation of different material, improvement of the processing capacity by more than 35%.

Advantages

Jig

Stroke and jig frequency are easy to adjust; the advanced frequency conversion speed control technology is convenient to operate and manage
Small cover area, high processing capacity per unit area

Work Principle

Jig

Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.

Product Structure

Jig

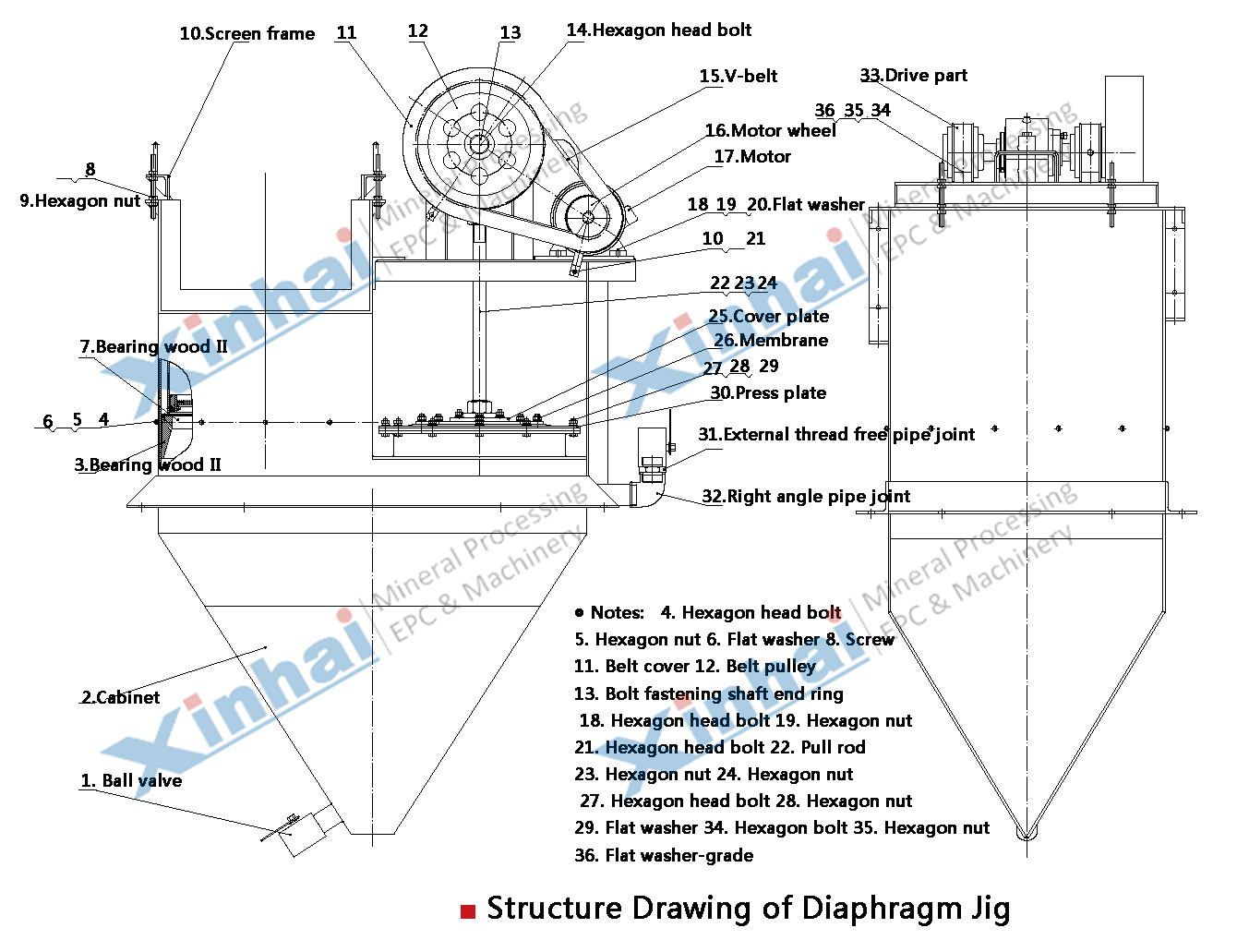

Jig is screen fixed type mainly used to handle placer gold, tungsten, tin, hematite and beach placer.The maximum feeding particle size is 6~8mm.

Technical Parameters

Item & Parameters & Model	Jigging Chamber		Diaphragm		Feed Size (mm)	Adding Water Yield Under Screen (m3/t)	Water Pressure (MPa)	Handling Capacity (t/h)	Motor Power (kW)	Dimension (mm)	Weight (kg)
Item & Parameters & Model	Shape	Area (m2)	Stroke (mm)	Jig Frequency (time/min)	Feed Size (mm)	Adding Water Yield Under Screen (m3/t)	Water Pressure (MPa)	Handling Capacity (t/h)	Motor Power (kW)	Dimension (mm)	Weight (kg)
JT-0.57	Trapezoid	0.57	8.5 ~12 10 ~17 12 ~21	80~180	<6	1~2	≥ 0.05	1.5 ~3	1.5	1550X780X1530	610
JT1-1	Trapezoid	1.04			<10	2~3		2.5 ~5	2.2	2270X1110X1890	900
JT2-2	Rectangle	2.28			<10	2~4		5~10	3	3225X1550X2050	1640
JT3-1	Trapezoid	3	12 ~30	50~125	<10	3~6	≥ 0.05	7.5 ~15	5.5	2745X2000X3030	3085
JT4-2	Rectangle	4	25 ~57		<25	4~8		8~20	7.5	4240X1990X2750	3098
JT4-2A	Rectangle	4	25 ~57		<25	4~8		8~20	4X2	4240X1990X2750	3500
JT5-2	Trapezoid	4.86	12 ~30		<10	3~6		12 ~25	7.5	3600X2000X2600	4500
