Flotation

•

  SF Flotation Cell

  Introduction

  SF flotation cell is a mechanical agitation type flotation equipment with self-slurry suction and self-air suction

  Effective Volume

  0.37～20m³

  Product Improvement

  Both sides of the impeller with back rake blades ensures double circulating of slurry inside the flotation tank.

  Forward type tank, small dead end, fast foam movement
•

  JJF Flotation, Wemco Flotation

  Introduction

  A self-air suction mechanical stirring floatation cell without slurry suction (Referring to the design of USA wemco flotation machine)

  Effective Volume

  2-20m3/min³

  Product Improvement

  Shallow groove, the stator lower than the impeller, large slurry circulation volume, low energy consumption; the stator is a cylinder with an elliptical hole which is conducive to the dispersion and mixing of pulp and air. Umbrella shaped dispersion cover with hole keeps the pulp surface stable.
•

  BF Flotation Cell

  Introduction

  A mechanical agitation type floatation cell unit with self-air suction and combination of slurry suction/no slurry suction

  Effective Volume

  0.06～24m3/min³

  Product Improvement

  BF flotation cell has two types: type I and type II. Type I is improved as suction cell referring to model SF; type II is improved as direct flow cell referring to model JJF. Both are briefly called model BF.
•

  KYF Air Inflation Flotation Cell

  Introduction

  An air-inflation mechanical agitation floatation cell without slurry suction（This type of cell is designed referring to Finland Autoquenpu OK floatation cell).

  Effective Volume

  1～38m³

  Product Improvement

  Taper impeller with its blades sloping backward at certain angle, simple structure, strong agitation ability, and low energy consumption

  The impeller is equipped with holey cylinder air allocator. The air scattering is uniform and the mixing effect of air and slurry is good

  U-shaped tank, little sedimentation of sand
•

  XCF air inflation flotation cell

  Introduction

  An air inflation mechanical agitation floatation cell with slurry suction（as suction cell of KYF floatation cell).

  Effective Volume

  1～38m³

  Product Improvement

  The features of structure and performance of the cell is similar to KYF flotation cell. The difference is that there is a stator specially set above the impeller to form a special negative pressure area. It has the function of automatic suction slurry with a little higher energy consumption.
•

  XJB Bar Flotation Cell

  Product Introduction

  A bar flotation cell with self-air suction and mechanical agitation

  Effective Volume

  1～4m3

  Product Improvement

  There is a convex bench and an arc-shaped steady flow plate. The convex bench works as the guide groove, which makes the mixture of air and slurry rush to the bottom of tank. And then with the steady flow plate the mixture spreads in the tank uniformly, moving in the shape of W.
•

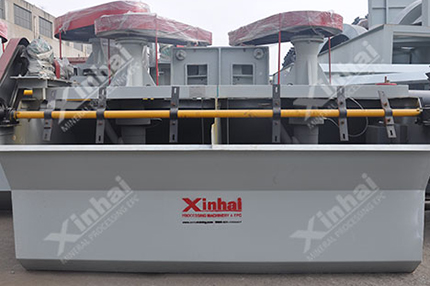

  CLF Flotation Cell

  Introduction

  A flotation cell used for coarse and heavy particles.

  Effective Volume

  0.5～38m3/min

  Product Improvement

  CLF flotation cell adopts a new type impeller, stator system and a brand-new slurry circulation mode, which effectively improve the load capacity of the mineralized bubble and the particle size of the floated ore.
