Energy Saving Ball Mill

Advantages

• Large double row self-aligning roller bearing with low friction force is used to replace sliding bearing, which is easy to start and saves 20-30% energy.

• Cylindrical energy saving grid ball mill is lined grooved ring plate which increases the contact surface of ball and ore and strengthens the grinding.

• Large ore outlet and large capacity

• The mill with diameter below 2.1 meters adopts whole machine frame, which is convenient for civil construction and equipment installation.

• Oil mist lubrication device guarantees the lubrication of all gears

Product Description

Cylindrical energy saving grid ball mill is one of energy saving mills developed by Xinhai, which is easy to start and saves 20-30% energy. It is lined grooved ring plate which increases the contact surface of ball and ore and strengthens the grinding. In addition, the large ore outlet increases the capacity. The particle size of grinding product is coarse, so it is applied in first grinding.

Work Principle

The main part of cylindrical energy saving grid ball mill is cylinder with small diameter and large length rotating slowly by the transmission device. The material is fed from the cylinder inlet and grinded by the impact of steel ball and ore and self-grinding. Due to the continuously feeding material, the pressure pushes material to the outlet and the grinded material is discharged from the cylinder outlet. In wet grinding, material is taken out; in dry grinding, the material is taken out by air. The grid installed in the outlet of mill is relied for forced discharge. Low pulp surface in cylinder reduces the ore over-grinding, and prevent the steel ball out. Under the same production conditions, production capacity of grid mill is larger than overflow mill’s. Both ends of the cylinder body adopt rolling bearing instead of the sliding bearing, which is more energy-saving.

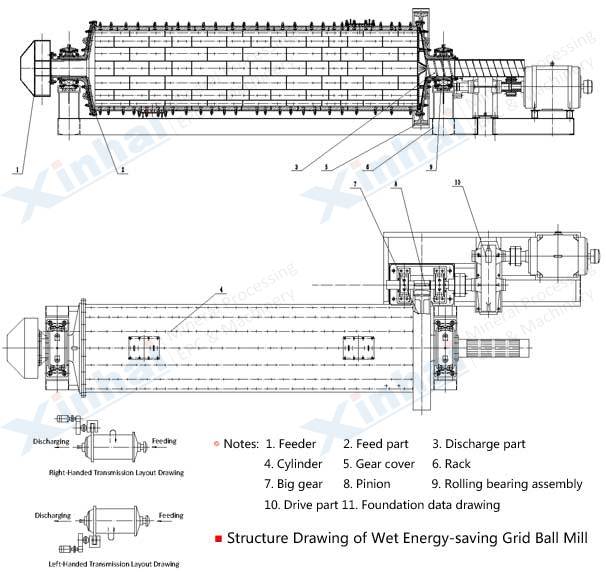

Product Structure

Cylindrical energy saving grid ball mill consist of feeding part, discharging part, rotary part, transmission part (reducer, small gear, motors, electrical control) and other major parts. Hollow shaft is steel castings, and the liner is detachable. Rotary gear is processed by casting hobbing. The cylinder is lined wear-resistant liner plate with good resistance to wear. This machine works stably.

Product Separation

The mill with coarse particle product is common used in the first stage grinding

Technical Parameters
